More information on our New Sahinler HPK100 Hydraulic Section Bender available for sale, is listed below:

Specifications:

• Distance between centers: 1000mm

• Max swing Ø over bed: 320mm

• Max swing Ø over saddle: 150mm

• Spindle taper: MT5

• Max Ø of spindle bore: 38mm

• Spindle speed range: 100-2500rpm

• Travel of crosslide: 160mm

• Feed motor torque (X/Z): 6NM/12NM

• X rapid traverse: 5m/min

• Z rapid traverse: 10/min

• Electric toolpost: 4 station

• Taper of tailstock: MT3

• Barel travel of tailstock: 160mm

• Power of main motor: 2.2kW

• Dimensions: 2300 x 1100 x 1650 (LxWxH)

• Weight: 950kg

Standard Accessories:

• 160mm 3 -Jaw Chuck and Tool Post Wrench

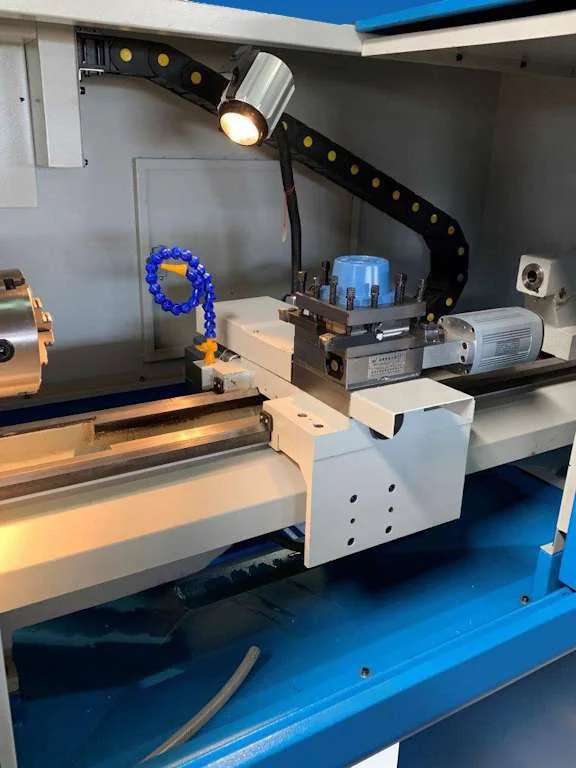

• Electrical Toolpost (4 Station)

• Cooling System

• Automatic Lubricating system

• Working Lamp

• Siemens 808D CNC Control

• Induction Hardened Bed-Way

• Sheetmetal base

Optional Accessories:

• 6 -Station Electric Toolpost

• Pneumatic Chuck

• Hydraulic Chuck
