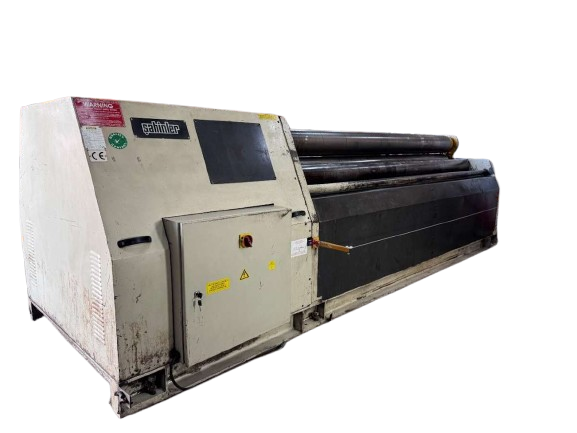

More information on our Used Sahinler 4R HS 30-220 Hydraulic Plate Roll available for sale, is listed below:

• Technical Details

  • Useful length: 3100mm

  • Capacity @ 1100 Ø without prebending: 8 x 3100mm

  • Capacity @ 1100 Ø with prebending: 6 x 3100mm

  • Capacity @ 330 Ø without prebending: 6 x 3100mm

  • Capacity @ 330 Ø with prebending: 4 x 3100mm

  • Central rolls Ø: 220mm

  • Side rolls Ø: 160mm

  • Motor power: 5,5kW

  • Working speed: 1,5 - 6m/min

  • Machine dimensions (LxWxH): 5450 x 1100 x 1250mm

  • Weight: 5200kg
