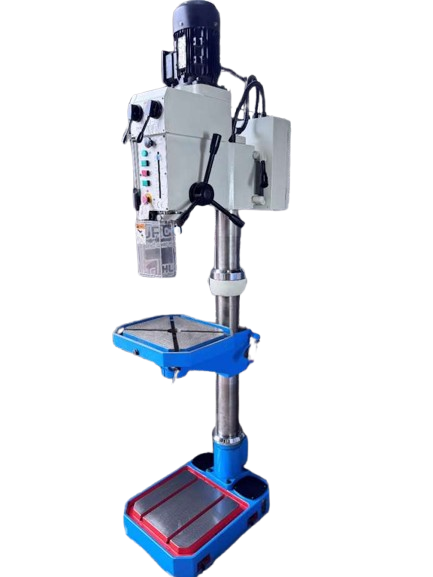

More information on our Used SMAC ZN5025 Geared Head Drilling Machine available for sale, is listed below:

Max drilling capacity: 25mm
Max tapping capacity: M18
Distance from pillar centre to spindle centre: 240mm
Max spindle to table distance: 675mm
Max spindle to base distance: 1140mm
Max spindle stroke: 110mm
Spindle taper: MT3
Number of speeds: 6
Spindle speed range: 125~2825rpm
Worktable size: 400 x 330mm
Base size: 310 x 320mm
Column diameter: 100mm
Worklight
Motor: 0.75kW 380V
Dimensions: 700 x 460 x 1925mm
Weight: 300kg


Very good condition!
