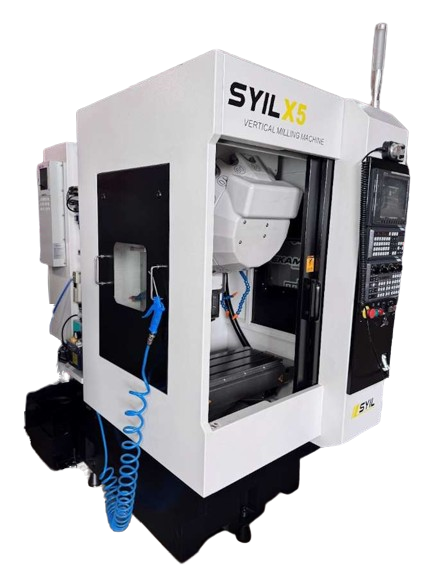

More information on our Used SYIL X5 Vertical CNC Machining Centre 3-Axis available for sale, is listed below:

• Like New! Manufacture date: 2024

  Features

  • Axis travels: 300 x 260 x 300 mm (X x Y x Z)

  • 16-position high-speed servo ATC (BT30)

  • 20,000 RPM direct-coupled BT30 spindle

  • SCHNEEBERGER mineral-cast machine frame

  • THK high-precision ball screws and linear guides

  • Optional fourth axis available

  • Wheel-type high-speed tool changer (16 pcs)

  Specifications

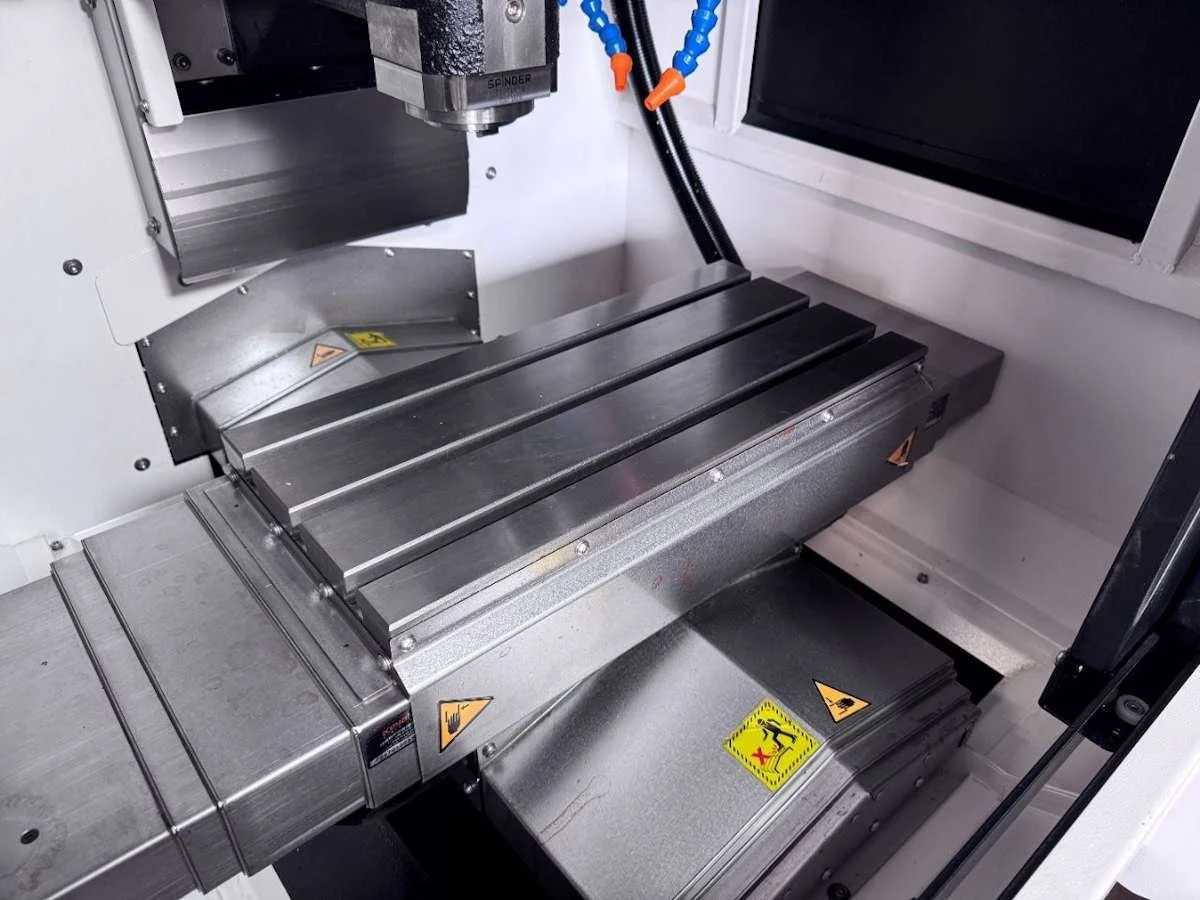

  Table

  • Table size: 560 x 260 mm

  • T-slots: 3 × 14 mm × 80 mm

  • Max table load: 150 kg

  Travel

  • X travel: 300 mm

  • Y travel: 260 mm

  • Z travel: 300 mm

  • Spindle nose to tabletop: 150–450 mm

  • Spindle to column surface: 330 mm

  Spindle

  • Spindle nose: BT30

  • Max speed: 20,000 RPM

  • Transmission: Direct drive

  Feed

  • Cutting feed: 10,000 mm/min

  • Rapid traverse: 30,000 mm/min

  Auto Tool Changer (ATC)

  • Type: Wheel-type

  • Capacity: 16 tools (BT30)

  • Max tool diameter: 63 mm

  • Max tool length: 200 mm

  • Max tool weight: 3 kg

  • Tool-to-tool time: 1 s

  Control & Power

  • Controller: LNC 6800

  • Spindle motor: 3.7 kW (rated) / 5.5 kW (max)

  • Drive motors (X/Y/Z): 0.85 / 1.3 / 1.3 kW

  • Power source: AC 380 V, 3-phase

  • Total power: 10 kVA

  Machine Size & Weight

  • Floor footprint (L × W × H): 178 × 100 × 200 cm

  • Net weight: 2000 kg

  • Gross weight: 2180 kg

  • Packing size (L × W × H): 212 × 125 × 225 cm

  Condition: Like new — manufactured 2024, well maintained and ready for production.
