CNC Plasma Cutting Tables

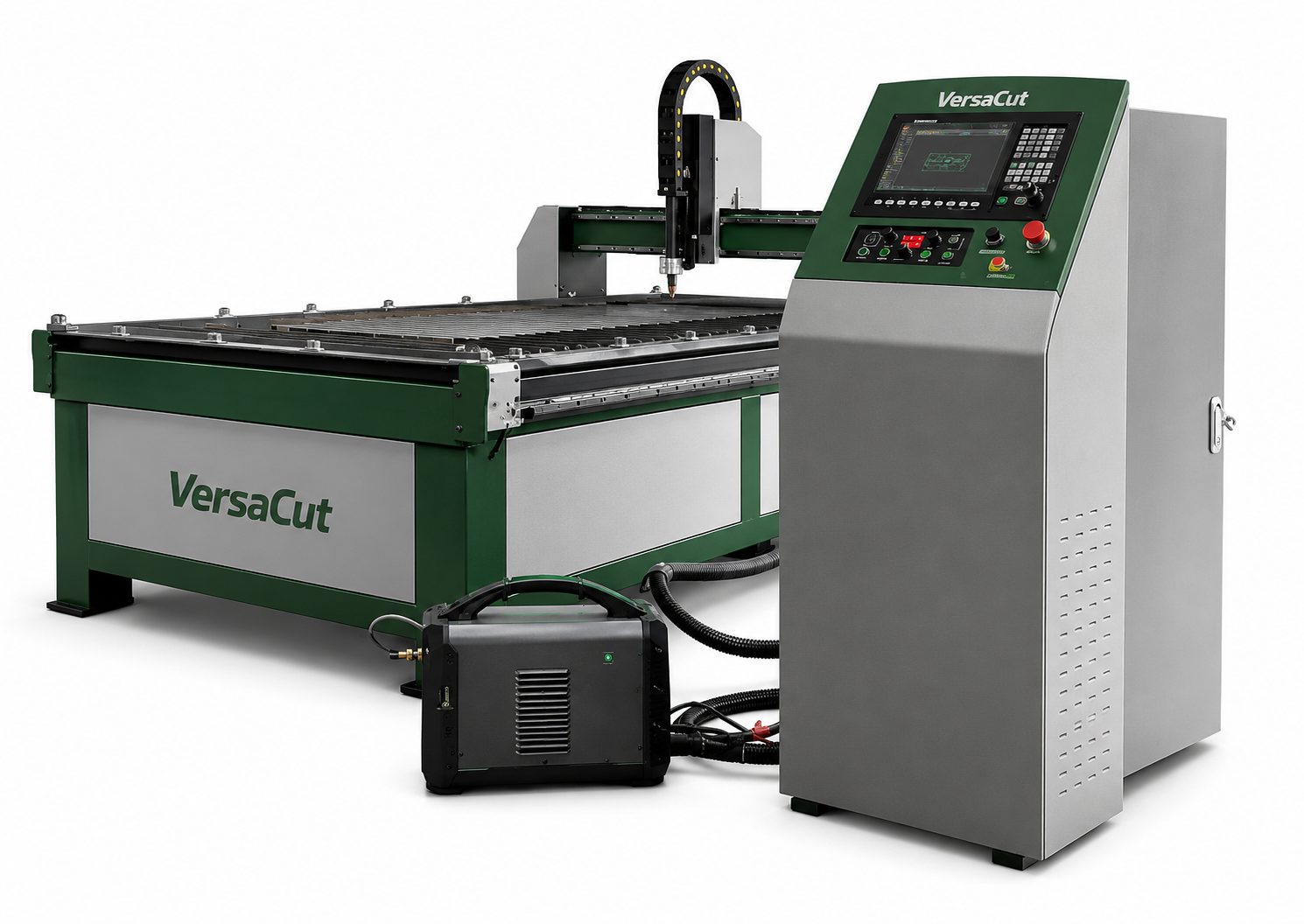

VersaCut 105A-3015 CNC Plasma Cutter
The VersaCut 105A-3015 is a reliable CNC plasma cutting machine with a 1,500 × 3,000 mm working area and a powerful 105A plasma system. It is designed for fast, accurate cutting of mild steel and stainless steel in fabrication and general metal-processing applications.
Its precision linear guides, synchronised drive system and automatic torch-height control provide stable cutting performance. A user-friendly CNC controller, USB file transfer and nesting software help simplify setup and daily operation.
Key Features
- 105A plasma cutting system
- Large 1,500 × 3,000 mm working area
- Maximum stated cutting thickness of 20 mm mild steel
- Maximum stated cutting thickness of 10 mm stainless steel
- Precision linear guides and synchronised drive system
- Automatic torch-height control
- User-friendly CNC controller with colour display
- USB program transfer and FASTCAM nesting software
- Maximum cutting speed of 12,000 mm/min
- Air-operated plasma cutting system
Technical Specifications
| Model | 105A-3015 |
| Working Area | 1,500 × 3,000 mm |
| Plasma Output | 105A |
| Maximum Mild-Steel Thickness | 20 mm |
| Maximum Stainless-Steel Thickness | 10 mm |
| Z-Axis Clearance | 200 mm |
| Movement Precision | ±0.1 mm |
| Positioning Precision | ±0.15 mm |
| Maximum Cutting Speed | 12,000 mm/min |
| Maximum Travel Speed | 20,000 mm/min |
| Required Gas | Compressed air at 0.4 MPa |
| Table Height | 850 mm |
| Power Consumption | 4 kW, excluding plasma system |
| Machine Dimensions | 3,400 × 2,300 × 1,800 mm |
| Machine Weight | 1,600 kg |
